Data :
 output power: 30W/15W,
tubes used: 4 x EL84 and 2 x 12AX7,
2 channels: clear and overdrive,
two separate tone control for each channel clean and drive with EQ MOD,
volume regulators - clear channel, gain and volume overdrive channel,
two separate positions, switched with footswitch, Gain regulators,
master volume,
footswitch socket: channel and Gain 2 switching,
footswitch socket: spring reverb and loop effect bypass,
channel switching on relays,
separate bright switches for both channels,
series effect loop,
spring reverb,
line level Direct Output with speakers simulation,
speaker outputs: 4 ohm, 8 ohm, 16 ohm.
Celestion Heritage series G12H loudspeaker,
dimensions (width x depth x height): 490 x 270 x 450,
weight: 24,2 kg,

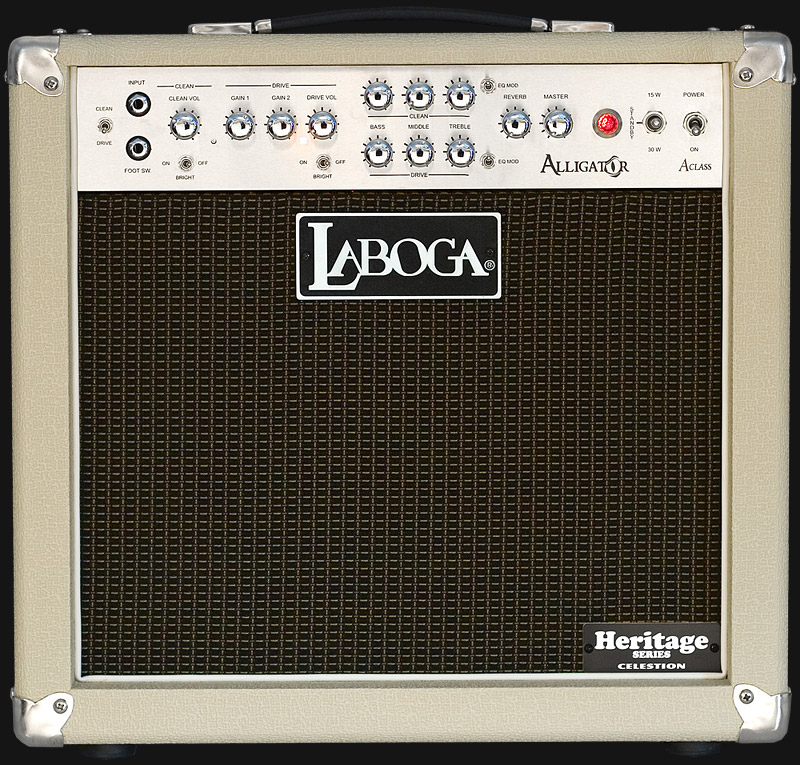

Front panel:
 |
 click to enlarge |
Rear panel:
 |
| click to enlarge |
|
